WIRE / CABLE OPTICS

Cables y fibra óptica

Cables y fibra óptica

RIPCORDS

BARCELONA PERFORMANCE YARNS HILOS DE NYLON

BINDERS

FILLERS

RIPCORDS

BPY Ripcords are made with excellent cutting properties for an easy removal of cable jackets and delivering a high performance and quality cords



Aramid Ripcords



High Modulus

High Tenacity

Standard Tenacity



Common constructions



1100 Dtex1670 Dtex3300 Dtex



1100X3 Dtex1670X3 Dtex3300X3 Dtex



Avaialble TPM



From 30 tpm (S/Z) t 200 tp, (S/Z)

Double Twist

Plying



Other constructions available under demand*





Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Bobbins covered in black bags





Different coatings available



Wide range of colors available:

Red, blue, green, orange etc.

Polyurethane



Technical Features



Excellent cutting properties

Abrasion Resistance

High tensile strength

Easy to trace

Fire retardant

High uniform cord quality

High temperature resistance

Polyester Ripcords



High Tenacity Polyester

Low Shrinkage Polyester





Common constructions

1100 Dtex1670 Dtex2200 Dtex3300 Dtex



1100X3 Dtex1670X3 Dtex2200X3 Dtex3300X3 Dtex



Avaialble TPM



From 30 tpm (S/Z) t 200 tp, (S/Z)

Double Twist

Plying



Other constructions available under demand*



Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Bobbins covered in black bags



Different coatings available



Wide range of colors available:

Red, blue, green, orange etc.

Polyurethane



Technical Features



Low Shrinkage

Very Low Shrinkage

Good tensile strength

Abrasion Resistance

Carrete de hilo

Nylon Ripcords



High Tenacity



Common constructions



470 Dtex700 Dtex940 Dtex1260 Dtex



1400 Dtex1880 Dtex2115 Dtex2820 Dtex



Avaialble TPM



From 30 tpm (S/Z) t 200 tp, (S/Z)

Double Twist

Plying



Other constructions available under demand*



Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Bobbins covered in black bags



Different coatings available



Wide range of colors available:

Red, blue, green, orange etc.

Polyurethane



Technical Features



Good tensile strength

Abrasion Resistance

BINDERS

Binders- Helps to identify codes, the manufacturer, customers etc. It helps to prevent damage on the cable

Aramid Binders



High Modulus

High Tenacity

Standard Tenacity



Common constructions

1100 Dtex1670 Dtex3300 Dtex



NO TWISTING TO AVOID MARKING THE CABLE JACKET

Available in one or two strands

Available with twists if required



Other constructions available under demand



Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Bobbins covered in black bags

Different coatings available



Wide range of colors available:



Red, blue, green, orange etc.

Polyurethane



Technical Features



High temperature resistant

High tensile strength

Low elongation

Ties for fiber optic cable

Carrete de hilo

Polyester Binders



High Modulus

High Tenacity

Standard Tenacity



CONSTRUCCIONES COMUNES

550 Dtex1100 Dtex1670 Dtex2200 Dtex3300 Dtex



NO TWISTING TO AVOID MARKING THE CABLE JACKET

Available in one or two strands

Available with twists if required



Other constructions available under demand*



Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Different coatings available



Wide range of colors available:



Red, blue, green, orange etc.

Polyurethane



Technical Features



Low shrinkage and very low shrinkage bindings

Withstands high winding speeds

High tensile strength

Nylon Binders

High Modulus

High Tenacity

Standard Tenacity

Common constructions

470 Dtex700 Dtex940 Dtex1260 Dtex



1400 Dtex1880 Dtex2115 Dtex2820 Dtex



NO TWISTING TO AVOID MARKING THE CABLE JACKET



Available in one or two strands

Available with twists if required



Other constructions available under demand*



Customized Windings



Bobbins from 1,7kg up to 8kg knotless

Even Bobbins

Different tube measure available

High pressure windings

Different coatings available



Wide range of colors available



Red, blue, green, orange etc.

Polyurethane



Technical Features



Unit and subunit ties

Cable identifiers



Carrete de hilo

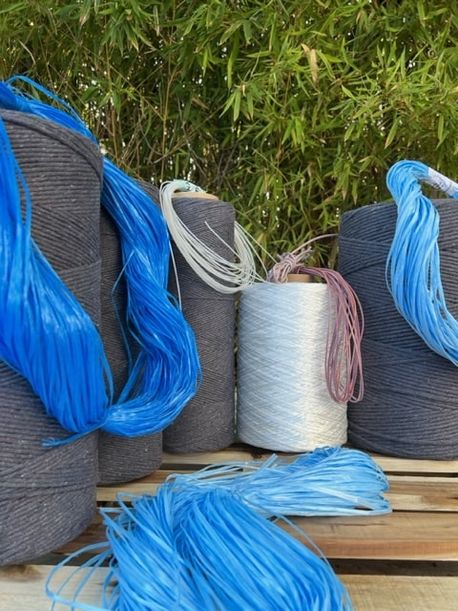

FILLERS

Fillers - Helps the cord to retain its shape and reducing friction and heat

Available Materials

Polypropylene Yarns

300 tex430 tex1000tex2000tex

Other sizes available



Paper Yarns : Knotless Bobbins



2.0mm2.2mm2.5mm2.8mm3.0mm
3.2mm3.4mm3.8mm4.0mm4.2mm
4.4mm5.0mm5.8mm6.0mm7.0mm
8.0mm8.4mm9.0mm10.0mm12.0mm



Cotton yarns: Regenerated Cotton



1.6mm2.0mm3.1mm
4.0mm5.0mm6.0mm8.0mm



PE and PE Monofilament Yarns



1.0mm1.2mm1.5mm1.6mm1.8mm2.0mm



Aramid Braided Cords



Available Diameters: From 0.8mm up to 10mm

REINFORCEMENT YARNS

Reinforcement Yarns – Low Shrinkage yarns

LOW SHRINKAGE POLYESTER YARNS

TWIST LEVEL

From 30 tpm to 200 tpm.




CUSTOMIZED WINDINGS

Bobbins from 1,7kg up to 8kg without knots; possibility of some splicing on request.

Metered Bobbins

High pressure windings

Different tube sizes available




DIFFERENT FINISHES AVAILABLE

Different colors available: red, blue, green, green, orange

Polyurethane



TECHNICAL PROPERTIES

High tenacity



CUSTOM COATINGS



Coated Yarns - Help improve abrasion resistance, add color to the yarn and improve and extend yarn life and functionality.

Available coatings in all the following materials

PoliésterAramidaNylonDyneema®PVAMeta-Aramida



Polyurethane yarns for improved abrasion resistance

Non-wicking yarns (moisture repellent)

We apply any color on request to all fibers: Aramid, polyester, Nylon, etc.

Bondings

Our goal is to manufacture products that improves technical properties
